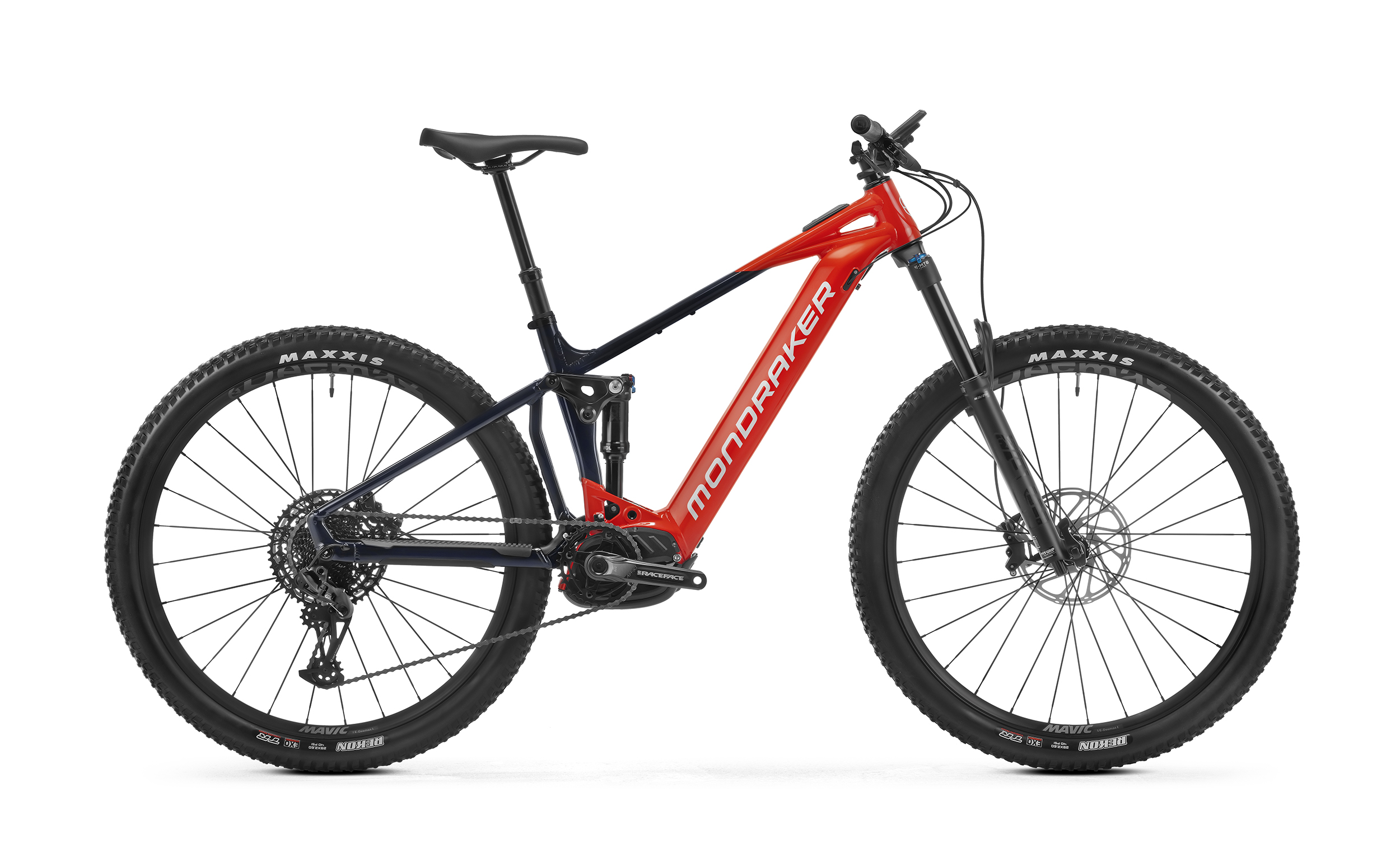

CHASER R Flame Red S

•

  Frame

  Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard



  Sizes

  S: 380mm / M: 420mm / L: 450mm / XL: 490mm



  Rear shock

  Fox Float Rhythm, 205x65mm. Settings: 2-position compression adjustment (Open/Firm), rebound, air preload. Trunnion top mount, 25x10mm bottom bushings



  Shock settings

  LCM compression, LRM rebound, CML, air volume spacer 0.4



  Fork

  Fox 36 29 Rhythm Float GRIP, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: sweep adjust compression, Low-speed rebound, air preload



  Headset

  Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º



  Stem

  Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore



  Handlebar

  Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.



  Grips

  Onoff Beehive, 1lock-on, 135mm



  Seatpost

  Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)



  Saddle

  MDK ebike black



  Front brake

  Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads



  Rear brake

  Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads



  Brake lever

  Sram DB8, tool reach adjust, lever pivot bushings



  Rims

  Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes



  Spokes

  Mavic J-bend double butted, contactless lacing

•

  Front hub

  Mavic, Boost 15x110mm, IS 6 bolts



  Rear hub

  Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub



  Front tire

  Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead



  Rear tire

  Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead



  Crankset

  Race Face Aeffect-R ebike, 160mm



  Rings

  Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD



  Chain

  Sram SX Eagle, 12s, Powerlock



  Rear derrailleur

  Sram GX Eagle,12s



  Shift levers

  Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click



  Casette

  Sram PG-1210, 11-50T, 12s



  Derailleur hanger

  Sram UDH



  Weight

  24,9 kg



  Display

  Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller



  Motor

  New Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)



  Battery

  Bosch Powertube 750Wh
